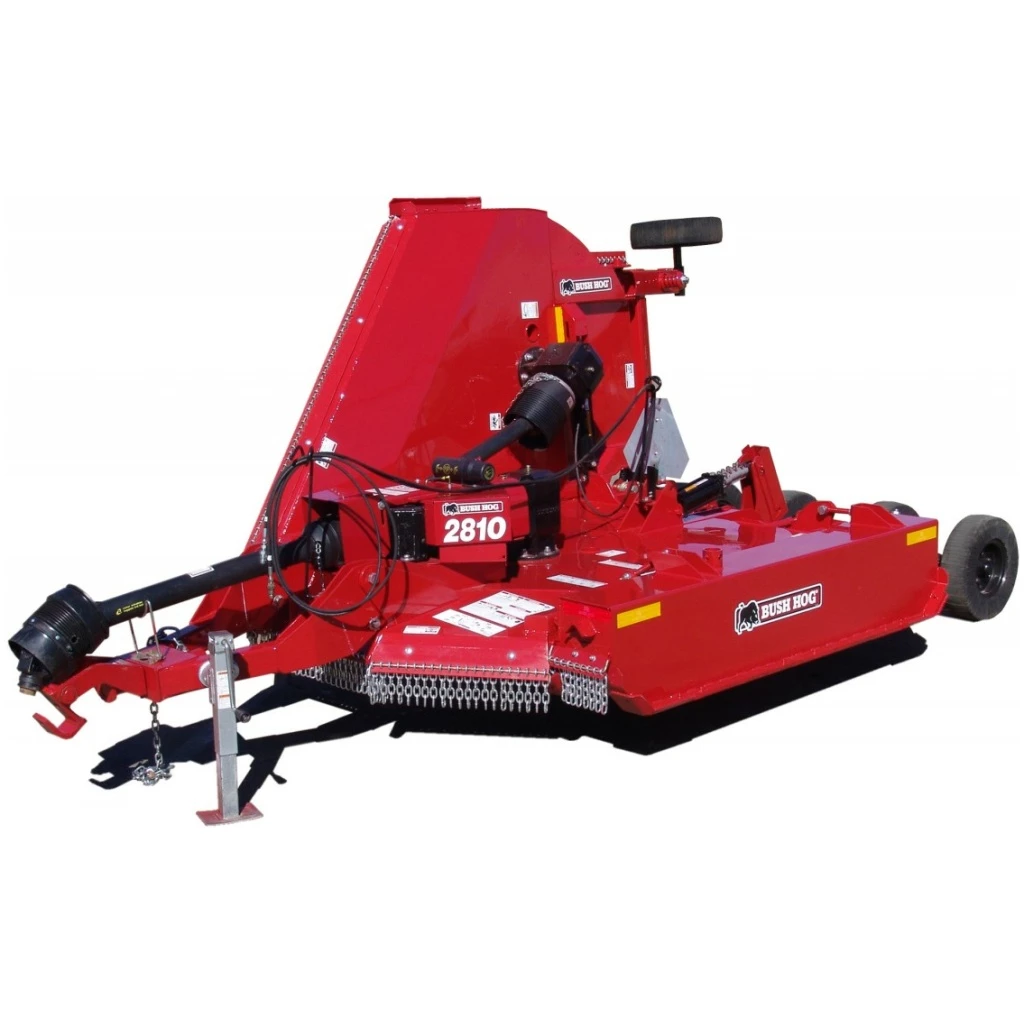

Bush Hog Single Flex-Wing Rotary Cutter 10′ #2810

Performance Features

• Wing and center skids are 3/8-inch thick for extended wear and outside edges are turned up at 45° to stop heavy ground contact that might damage the sidebands.
• Center section blades properly align with center wheels to closely cut out the bottom of ditches.
• Grease fittings and spring steel bushings at axle pivot points for longer life.
• Free wing float without movement of the hydraulic cylinder rod is 22° down and 45° up.

Construction Features

• Industry first, massive 3-inch output shaft with up to 27% more splines than smaller shafts for maximum transmission of torqueto blade pan.
• The Patent Pending oil sight gauge takes the guess work out of checking the oil. In less than 10 seconds, all three cutting box oil levels can be checked and rechecked as often as you walk around the machine. Never climb onto the cutter again to check the gearbox oil levels.
• Bush Hog’s E-Z lube drivelines are quick and easy to service. All grease fittings on the pto CV driveline and wing drivelines align for quick location of grease points. Since all grease fittings on all drivelines are in an up position on every 5th revolution, service times are reduced.

Safety Features

• Highway safety lighting is standard.
