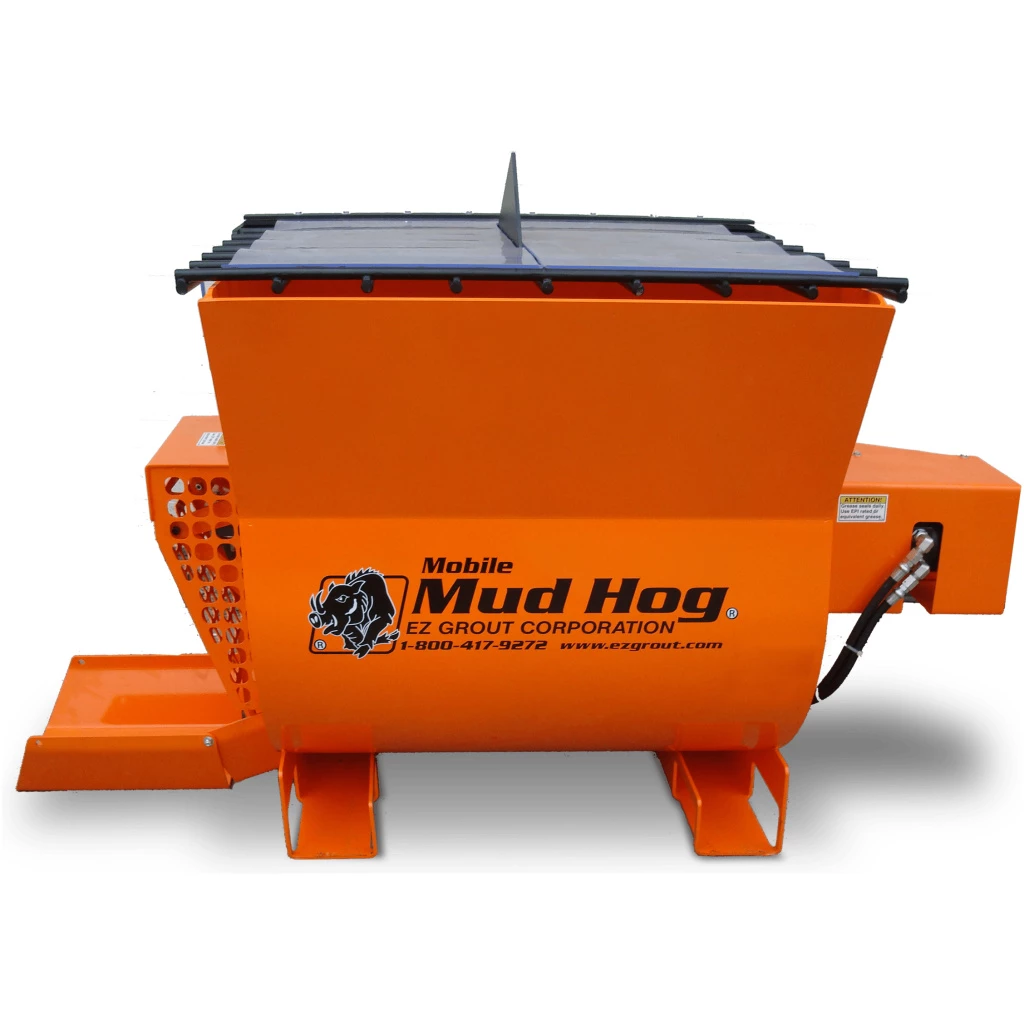

EZG Manufacturing EZG Mobile Mud Hog Mixer #MMH12

Specifications

Capacity Icon
Mixing capacities range from 4 cu. ft. – 20 cu. ft.

.11 m³ – .57 m³

Mix up Icon
Standard auxiliary hydraulic power source

Dimension
Mixes 3/4″ – 1″ aggregate

1.91cm – 2.54 cm

Weight
Empty weight ranges from 350 lbs. – 1400 lbs.

159 kg – 635 kg

Weight Icon
Gross weight 950 lbs. – 4400 lbs.

431 kg – 1996 kg

Engine Icon
Manual and hydraulic dump systems

Thickness Icon Copy
Hydraulic drive system

Weight Icon
Manual recoil and electric start

Hydraulic Icon
Various drum end and drum wrap thickness

Thickness Icon
Overall dimensions range from 48″ x 32″ x 38″ – 85″ x 45″ x 52″

1219.2 x 812.8 x 965.2 mm – 2159 x 1143 x 1320.8 mm

Benefits
Triple use: grout, mortar and concrete

Easy to load and unload – Move the mixer to the materials for loading and wherever needed for unloading with no unnecessary steps

Designed for use with a walk-behind skid steer loader
