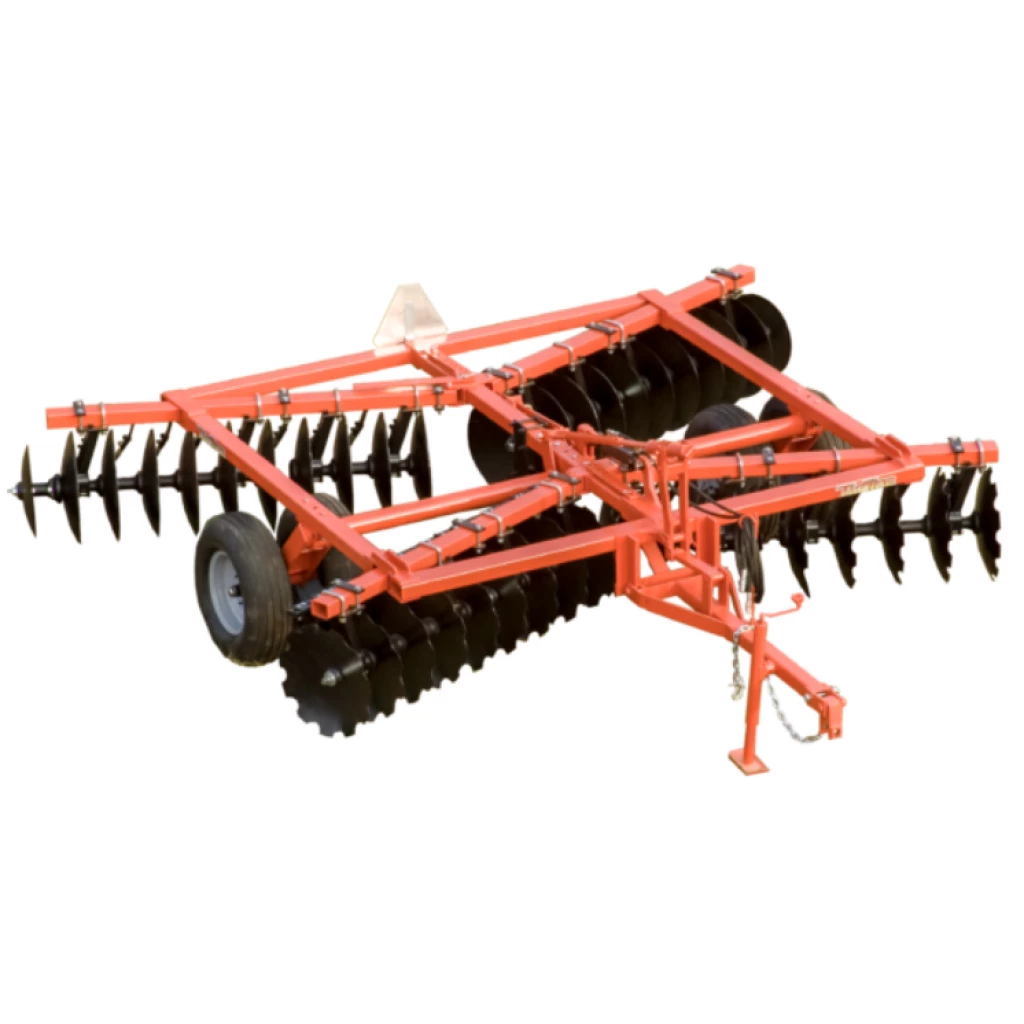

TW5 Series Tandem Wheel Disc Harrows
8β β 9β 6β Models
Tuflineβs TW5 Series Tandem Wheel Disc are designed for 35 to 65 horsepower tractors. The mainframe is constructed of heavy duty 3β square tube with tube type gang hangers. The gangs have a 1 1/8β square hi-strength axles with triple sealed ball bearings. All units have a front to rear leveling system and depth control. Safety chain and mounted tongue jack are standard. The units are available in 9β or 7 1/2β or combination blade spacing. 20β or 22β notched blades are standard with plain blades optional. Hydraulic cylinders, hoses, and tires are standard equipment.
10β 6β β 15β Models
Designed for 50 to 85 horsepower tractors, these wider models have 4β X 3β and 5β X 3β hi-yield tube frames with tube type gang hangers. The gangs have a 1 1/8β square hi-strength axles with triple sealed ball bearings. All units have a front to rear leveling system and depth control. Safety chain and mounted tongue jack are standard. The units are available in 9β or 7 1/2β or combination blade spacing. 20β or 22β notched blades are standard with plain blades optional. Hydraulic cylinders, hoses, and tires are standard equipment.
Optional Equipment:Β
β’ Heavy Duty Blade Scrapers
β’ Outrigger Assembly with 16β or 18β Plain Disc Blades
β’ Balk Breaker Assembly with Point
β’ Dual Wheel Kit for 10β6β to 13β4β models
β’ SMV Sign and Bracket
β’ Regreasable Bearings
β’ Roller Basket
